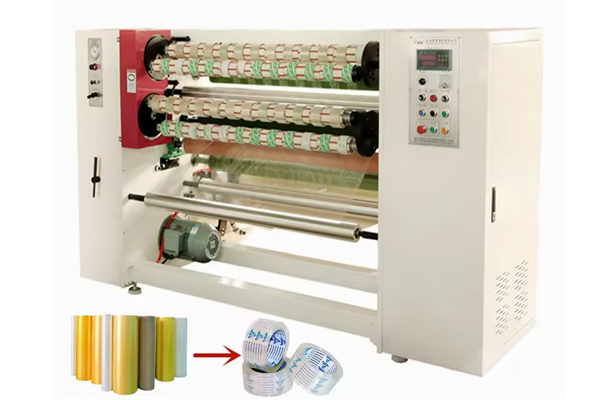

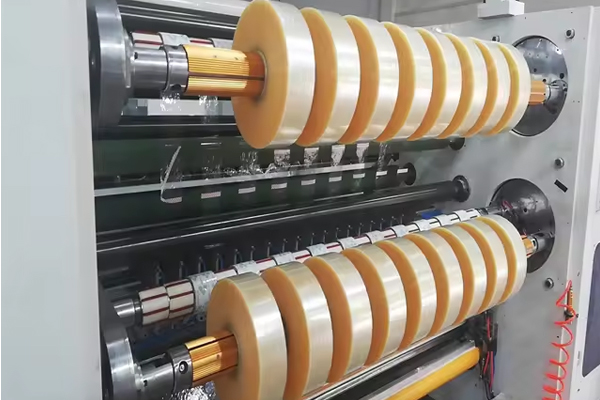

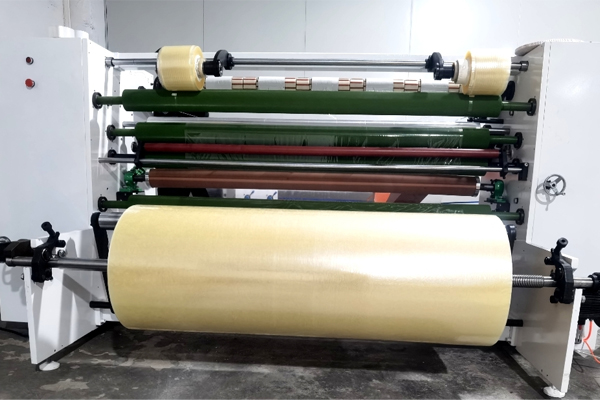

Bopp tape slitting rewinding machine, bopp tape cutting machine also known as bopp tape slitting machine. It is used to slit and cut the bopp clear or printed self adhesive tape.
1.Full-automatic four-shaft exchange is adopted and the efficiency isimproved.
2.Stepless speed regulation of frequency conversion and three-steplength setting provide smooth rewinding operation to ensure accurate rewinding length,It can automatically decelerate and stall when operating at high speed.
3.The unwinding tension is adopted with pneumatic braking control.
4.The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjust-ment of the tensile force.
5.The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
6.Pneumatic brake brings the machine to an immediate halt foraccurate positioning and labeling.
7.Optional Auto labeling and slitting stationery tape functions.
TECHNICAL PARAMETER | |
Specification: | 1300mm |
Max. Diameter Of Unwinding: | 800mm |
Max. Diameter Of Rewinding: | 180mm |
Min Cut Width: | 40-60mm |
Paper Core Diameter: | 76.2mm |
Max Product Speed: | 240 m/min |
Motor Power: | 5.5KW |
Voltage: | 380V 50HZ |
Air Pressure: | 0.4-0.6MPa |
Main Machine Dimension： | 3150*3680*1840mm |
