Henan Runwo Electromechanical Co., Ltd. is a professional manufacturer in producing and trading soft packaging equipments such as slitting, rewinding, cutting, coating machines and others. Suitable jumbo roll making slitting rewinding machine whether you are in the field of printing, packaging, new energy, aerospace, or new carbon fiber technology materials. Our professional team could meet your requirement to providing a suitable solution on slitting rewinding machine.
Get a Free Quote Now by E-mail: qushe@henanrunwo.com or WhatsApp/WeChat/Mobile+86 132 8386 3961

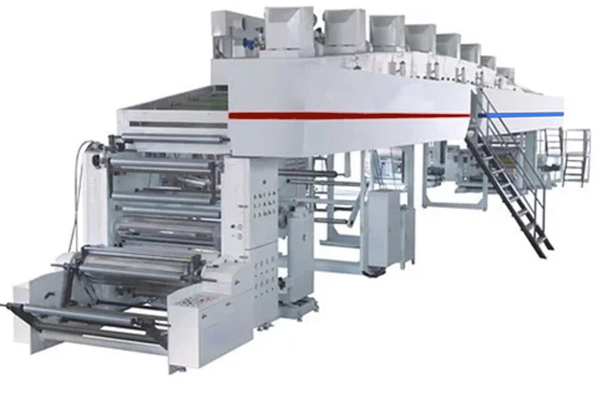

Bopp Tape Coating Machine Application
For coating water based adhesive on all kinds of materials, Such as BOPP film, to make jumbo roll.
Bopp Tape Coating Machine Features
1. Synchronous control system: frequency converting control. The traction , coating and cooling , winding multipoint transmission synchronization control , make the coating process more smoothly.
2. Tension control system: Automatic tension control for the whole machine, it can ensure the production process base material tension constant.
3. Man-machine system ：Man-machine interface with PLC program control are match perfect. It will be accurate and sensitive , easy to operate and anti-jamming.
4. Constant temperature control system: The constant of temperature drying part ：its depending on the type of coating and base material , glue.
5. Hot air circulation or infrared radiation heating a variety of ways;Every temperature zone temperature automatic control , control valve inlet and exhaust.
6. Automatic detection system: Automatic fault detection , automatic fault alarm , automatic length counting , speed , pneumatic components such as automatic clutch automatic control , reduce the operator Labour intensity .
7. Loading and unloading are double location switched or simplex electric lift ; with air swelling shaft loading and unloading of raw materials or finished products , it is convenient and quick operation , also can improve the work efficiency .
Bopp Tape Coating Making Machine Types
| NTH1200 Hot Melt Adhesive Coating Machine（Fully-auto） | 1. Working Rate: 250-300m/min 2. Splicing: Turret Auto Splicing Unwinder /Turret Auto Splicing Rewinder 3. Coating Die: Slot Die With Rotary bar 4. Application: Self-adhesive Label Stock |
| Hot Melt Adhesive Coating Machine(Semi-auto) | 1. Working Rate: 200-250m/min 2. Splicing: Single station manual splicing unwinder/Turret auto splicing rewinder 3. Coating Die: Slot die with rotary bar 4. Application: self-adhesive label stock |
| Hot Melt Adhesive Coating Machine (basic mode) | 1. Working Rate: 100-150m/min 2. Splicing: Single station manual splicing unwinder/Single station manual splicing rewinder 3. Coating Die: Slot die with rotary bar 4. Application: self-adhesive label stock |
| Hot Melt Adhesive Coating Machine(BOPP Tape) | 1. Application: BOPP tape 2. Material: BOPP film 3. Working Rate: 100-150m/min 4. Splicing: Single station manual splicing unwinder/Single station manual splicing rewinder |
| Double side tape hot melt adhesive coating machine foam tape | 1. Working Rate: 150m/min 2. Splicing:Single station manual splicing unwinder/Turret auto splicing rewinder 3. Coating Mathod: Slot die with rotary bar 4. Application: Double-side tape,foam tape,tissue tape,Aluminum foil tape |
| Hot Melt Adhesive Coating Machine | 1. Working Rate: 100-150m/min 2. Splicing: Single station manual splicing unwinder/Single station manual splicing rewinder 3. Coating Die: Slot die with rotary bar 4. Application: self-adhesive label stock |
| Integrated UV Silicone Coating and Hot Melt Adhesive Coating Machine for Linerless Label | 1. Max.Working Rate: 250 m/min 2. Splicing: Shaftless Splicing Unwinder/Rewinder 3. Coating Die: 5-roller Silicon Coating and Slot Die Coating with Rotary Bar 4. Application: Linerless Labels |
Bopp Tape Coating Machine Specifications
Valid Width: | 500mm,1000mm,1300mm, 1600mm |
Coating Method: | scraper/mayer bar |
Max. Diameter Of Unwinding: | 500-1200mm |
Max. Diameter Of Rewinding: | 800mm |
Speed: | 0-360m/min |
Coating Deviation: | ±0.0015mm |
Voltage: | 380V 50HZ 3Φ |
Drying Method: | Steam, oil, electric, stove |
Oven Length: | 12-48m(special design According to the requirements) |
Adhesive Tape Making Machine Types
